Conical vertical dryer (AMT)

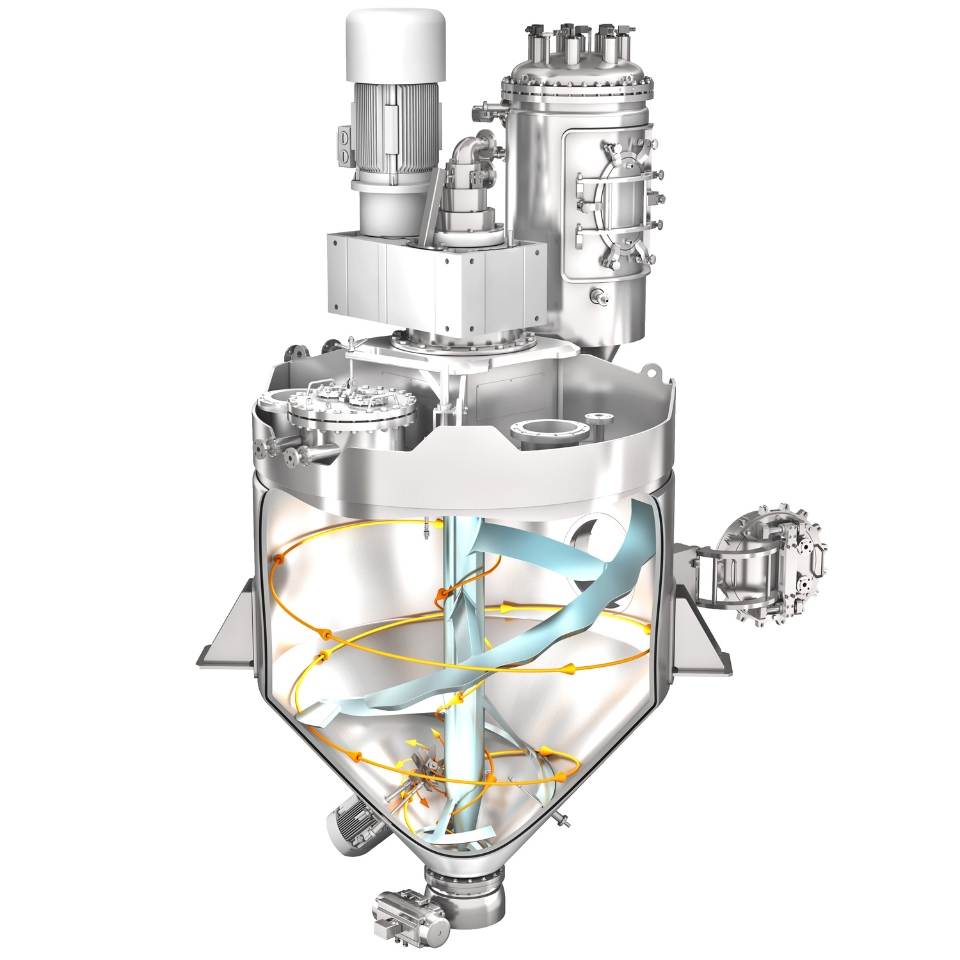

A spiral mixing blade inside the vertical dryer initiates a three-dimensional flow of the mixing goods; conical designed mixing vessel enables powders to be discharged up to 100%. The conical vertical dryer is vacuum and pressure tight and heatable by steam, thermal oil or water. Fully temperature controlled: the mixing vessel, the mixing arms, the spiral blade.
The conical mixer dryer can be designed for compliance with FDA and 3-A Sanitary Standards to be used as a sterile mixer and reactor. It also meets EHEDG requirements.
Further characteristics of the conical vertical dryer and powder dryer
- This jacketed and vacuum rated version is an ideal conical mixer, vertical dryer, and reactor.

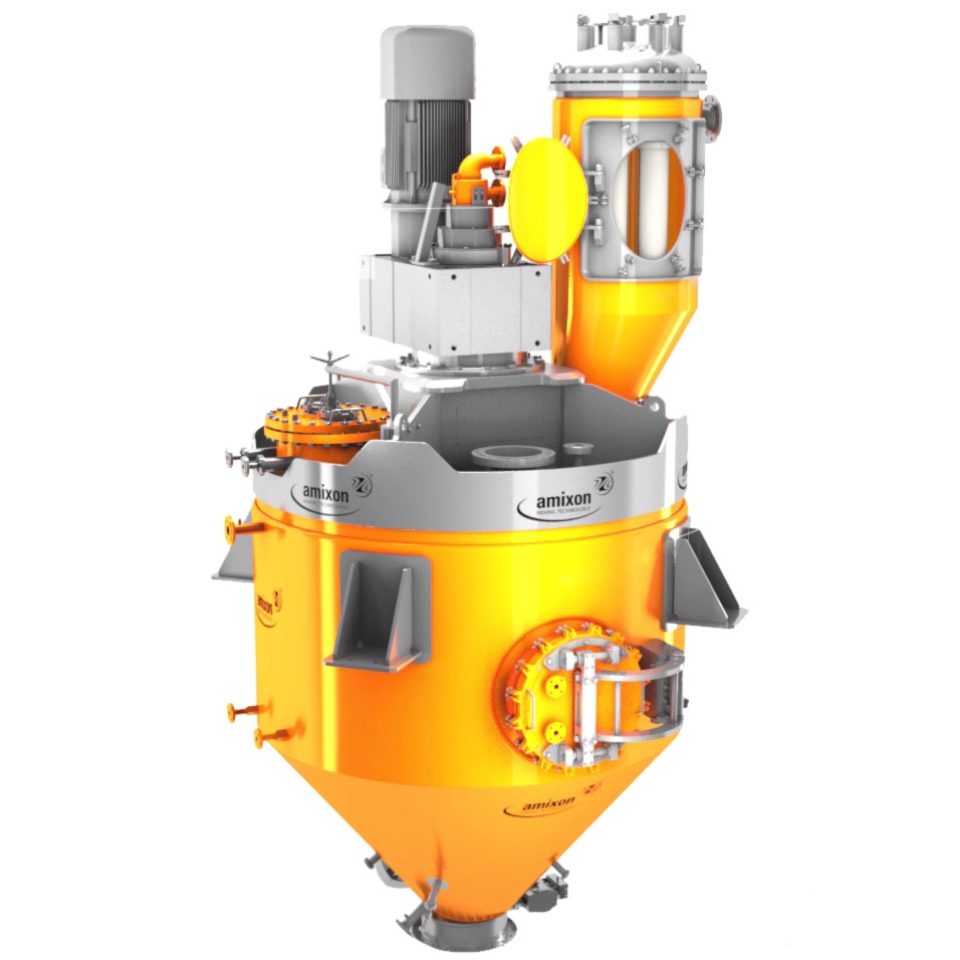

- Spiral tools, arms and shaft are jacketed and heated.
- This vertical dryer guarantees quick and gentle drying results.
- It can be used for moist powder, wet suspensions as well as liquids, paste and dough.
- If the drying process requires deagglomeration, high speed cutting rotors may be installed.
- The mixing device is driven from the top, using only a single top bearing.
- The single-shaft mixer-dryer meets all industry standards for surface finish, including sanitary and pharmaceutical requirements, and requires a very small space.
Learn more about the vacuum drying process, its advantages, and its common applications.

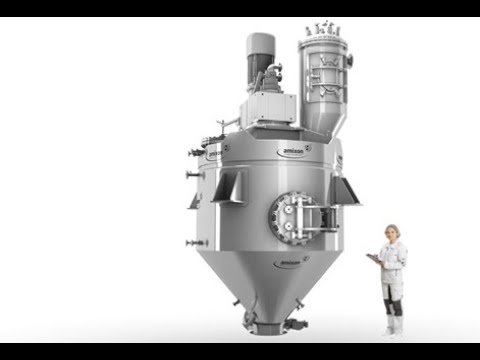

Product Video
| Cone mixer dryer reactor Type AMT The type designation corresponds to the maximum batch size in liters. Ideal mixing and drying effect even at low filling levels. |
Approximate gross volume of the mixer | Approximate dimensions of the standard design Please request detailed dimension sheets! |
The required drive power can vary greatly depending on bulk density, flow properties (viscoplastic phases), rotational speed, processing task such as desagglomeration. | Weight information can vary considerably depending on pressure stage, size of drive and type of design. The dynamic additional loads are very low. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | from | to | |||
| [Liter] | [mm] | [kW] | [kg] | |||||||
| 100 | 130 | 396 | 735 | 200 | 660 | 1166 | 478 | 1 | 3 | 980 |
| 200 | 260 | 473 | 935 | 200 | 825 | 1431 | 590 | 3 | 7 | 1230 |
| 300 | 390 | 462 | 1142 | 200 | 825 | 1431 | 553 | 4 | 12 | 1350 |
| 5000 | 6470 | 891 | 2395 | 230 | 2211 | 2756 | 1538 | 28 | 97 | 12920 |
| 6000 | 7760 | 891 | 2685 | 230 | 2365 | 2809 | 1643 | 31 | 108 | 14200 |
| 15000 | 19300 | 1210 | 3835 | 240 | 3080 | 4049 | 2356 | 51 | 181 | 31050 |
